Sliding vs Swinging Industrial Gates: Which Type to Pick for Your Facility
Jul 27, 2026
Article, Uncategorized
“Should I get a sliding gate or a swinging gate?” Plenty of people treat that like a style question — the kind of thing you decide with a quick look at a catalog photo. But when you’re specifying a gate for an industrial or commercial facility, that question touches on clearance geometry, vehicle throughput, wind load, ground conditions, power requirements, and long-term maintenance budgets. It’s actually one of the smartest questions a facility manager can ask early in the process.
So let’s answer it properly. This guide walks through how sliding vs swinging industrial gates which type to pick really comes down to your specific site — not personal preference. By the end, you’ll know which variables matter most and why, and you’ll be in a much better position to have a productive conversation with an installer.
Why This Question Is More Advanced Than It Sounds
When we get this call at RNA Automatic Gates, we know the person on the other end has already done some thinking. They’re not asking “what is a gate?” — they’re asking about a real engineering trade-off that trips up even experienced contractors.
Here’s why it matters so much at the industrial scale: a residential driveway gate that’s 10 feet wide and weighs 200 lbs is forgiving. If you pick the wrong style, the inconvenience is minor. But a 30-foot industrial gate running heavy steel, handling 50–100 vehicle passes per day, and securing a facility with serious liability exposure? A wrong choice costs tens of thousands of dollars to redo, plus downtime and disruption to operations.
Both gate types have genuine strengths. Neither is universally better. The right answer always comes from reading the site.

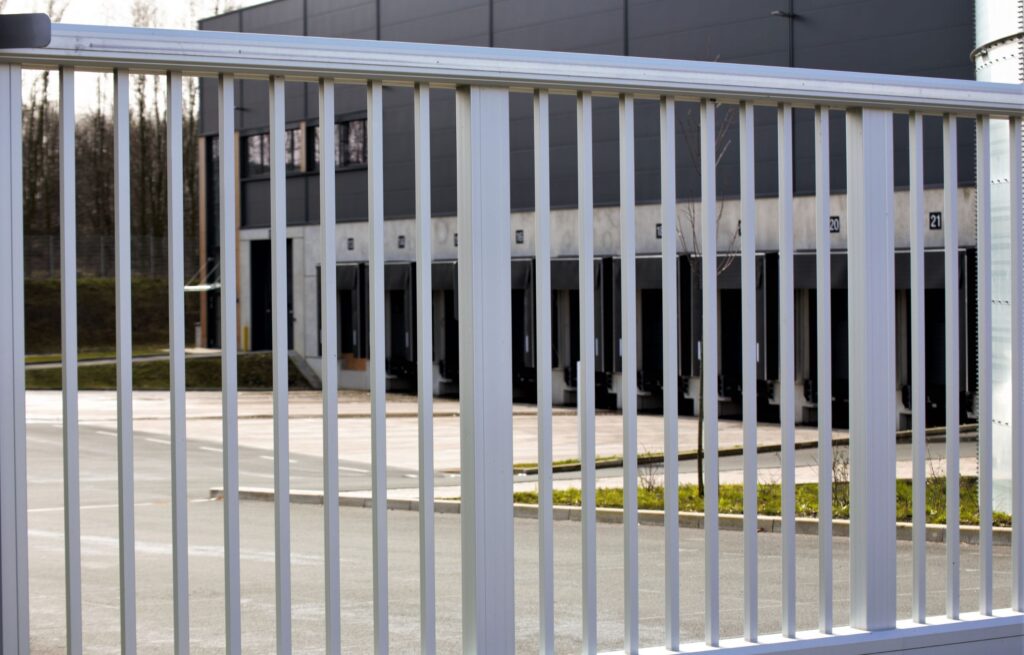

How Sliding Industrial Gates Work — and Where They Shine
A sliding gate travels laterally along a track, moving parallel to the fence line rather than swinging outward or inward. At the industrial level, you’ll typically encounter two sub-types:
V-Track Sliding Gates
These run on a bottom-mounted steel V-groove track embedded in the pavement. They’re extremely stable and can handle gates weighing several thousand pounds. The downside is that the track collects debris — gravel, mud, ice — which needs regular clearing to avoid drive motor strain.

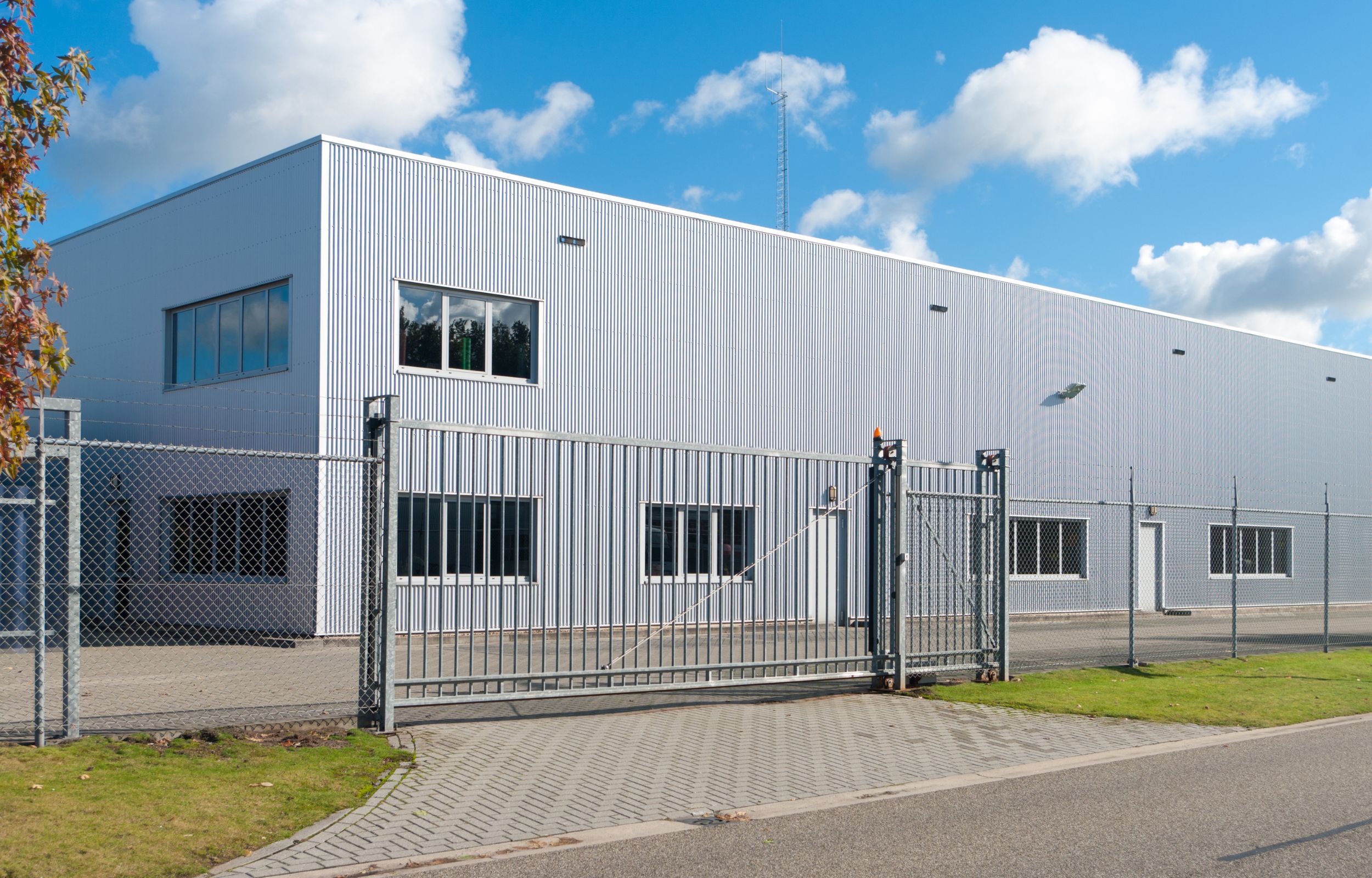

Cantilever Sliding Gates
A cantilever design has no bottom track at all. The gate is supported by rollers mounted to posts on one side, and the gate itself extends past the opening by roughly 50–60% of its own width as a counterbalance. These are the gold standard for most industrial applications because they handle uneven terrain, don’t accumulate debris in a track, and perform reliably in wet or muddy conditions.
Where sliding gates shine:
- Sites with limited setback on either side of the opening (no room for swing arc)
- High-traffic facilities where speed of operation matters (a well-tuned cantilever can cycle in 8–12 seconds for a 20-foot gate)
- Locations subject to high wind, since the gate doesn’t present a flat sail to lateral gusts when open
- Sloped driveways where a swinging gate would drag or bind against the grade
We’ve installed cantilever sliding gates at warehouses, distribution centers, and manufacturing yards throughout the South Bay, and they consistently outperform swing gates in high-cycle, heavy-use environments.
How Swinging Industrial Gates Work — and When They Win
A swinging gate pivots on hinges — either inward, outward, or as a bi-parting pair that splits in the middle. Industrial swing gates use heavy-duty hinge posts and commercial-grade actuators or hydraulic operators rather than the residential arms most homeowners are familiar with.
Single-Leaf Swing Gates
Best for narrower openings up to about 16–18 feet. A single panel keeps the hardware simple and the cost lower.

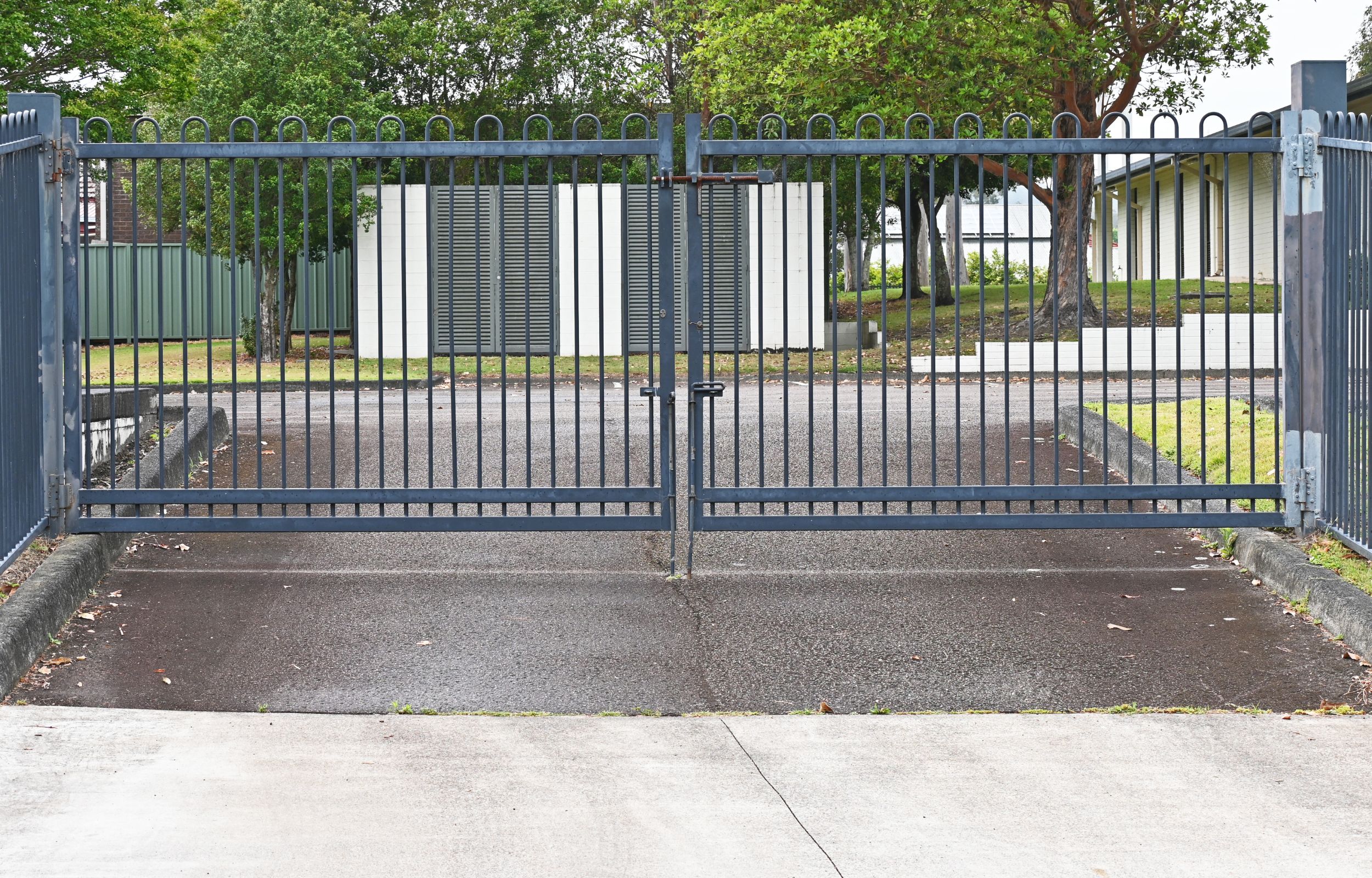

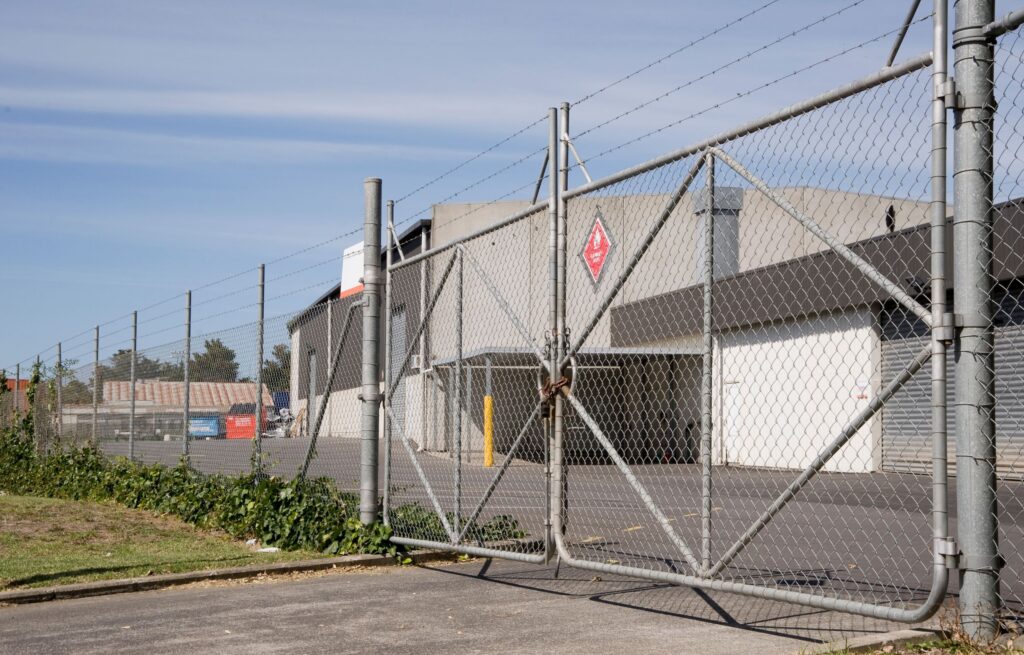

Bi-Parting (Dual) Swing Gates
For wider industrial openings, two panels meeting in the center cut the swing arc roughly in half. A 30-foot opening with bi-parting gates only requires about 15 feet of clearance on each side rather than a full 30-foot arc.
Where swing gates win:
- Sites with wide, flat, level aprons on one or both sides of the opening with ample clearance
- Locations where the total opening width makes a cantilever counterbalance impractical (very wide openings require an enormous run of fence to park the gate against)
- Facilities that need a more formal or architectural appearance at a main entrance
- Budget-constrained projects where simplicity of hardware reduces upfront cost
We’ve installed swing gates at gated corporate campus entrances and light-industrial parks in the area where the aesthetic mattered as much as the function, and they were absolutely the right call in those contexts. Check out our project gallery for real examples of both gate types installed at commercial and industrial facilities.
Looking for Affordable Garage & Gate Repairs?
We offer quality service at competitive rates. Call (650) 912-1200 today to schedule your repair.
The Real Trade-Offs: Space, Speed, Maintenance, and Cost
Let’s put the comparison side by side where it counts most.
Clearance and Footprint
A swinging gate needs a clear arc equal to its own width. A 20-foot single-leaf gate needs 20 feet of unobstructed space behind it (or in front, if outswing). Parking, loading docks, or fencing within that arc eliminates swing as an option. A cantilever sliding gate needs roughly 1.5× the gate width of fence run alongside the opening — a 20-foot gate needs about 30 feet of adjacent fence line. In tight urban industrial lots, neither option is free — you have to measure both clearances honestly.
Cycle Speed
Sliding cantilever gates generally cycle faster under power, which matters at facilities processing dozens of trucks per hour. A hydraulic swing actuator can match speed, but the hardware cost climbs significantly. For high-throughput applications, sliding wins on speed-per-dollar.
Maintenance Profile
Swing gates have fewer moving parts, but the hinges and actuator arms bear enormous stress on a heavy industrial gate. We’ve replaced actuator pivot pins on swing gates at high-cycle sites more often than we’d like. Cantilever rollers and guide wheels are wear items too, but they’re easy to inspect visually and relatively inexpensive to replace before they cause a failure.
V-track sliding gates add a third maintenance obligation: the track itself. Plan for quarterly cleaning at a minimum in any environment with loose material, leaves, or mud.
Cost Range
For a comparable opening width and steel gauge, a cantilever sliding gate and its operator generally cost 10–20% more than a swing gate installation due to the additional steel in the counterbalance tail and the more complex post-and-roller hardware. That premium is usually worth it for high-cycle industrial use. For a low-traffic facility that opens the gate twice a day, swing may be the smarter value.
Site Conditions That Should Make the Decision for You
After ten-plus years of doing this, I’ve found that certain site factors aren’t really debatable — they simply point to one solution.
Pick sliding (cantilever) if:
- Your driveway slopes more than 3–4% at the opening
- You have less than full-gate-width clearance on the swing side
- You’re expecting more than 20–30 cycles per day
- The site has significant wind exposure or sits in an open industrial park
- You need integration with loop detectors and fast automatic operation
Pick swinging if:
- You have a perfectly level, wide apron with ample clearance
- The total opening exceeds 40 feet and a cantilever run would be impractical
- You need a lower upfront cost and traffic is light
- Architectural appearance at a formal entrance is a priority
If you’re planning a project in the South Bay, our team handles industrial gate installation in Milpitas and industrial gate installation in Mountain View as well, so we can assess facilities across the region with the same on-site evaluation process. For Saratoga specifically, our Industrial Gate Installation Saratoga service covers the full scope from site assessment through permitting, installation, and commissioning.
Frequently Asked Questions About Industrial Gate Types
Can I install a sliding gate if I don't have a long fence run alongside the opening?
This is the most common constraint we encounter. If the fence run is too short for a full cantilever tail, you have a few options: extend the fence (sometimes with a decorative wing), use a bi-parting slide where each panel is half the opening width and each tail is shorter, or switch to a swing design. We'll measure the site and give you an honest answer on what fits.
How much does steel gauge matter when choosing a gate type?
It matters a lot for swing gates and somewhat less for cantilever slides. A very heavy steel swing gate puts extreme moment force on the hinge post and actuator — the hardware has to be sized accordingly, and that drives cost up fast. Cantilever systems distribute weight across multiple rollers, so they handle heavier steel more gracefully. For gates using Schedule 40 or heavier tubular steel, we generally lean toward cantilever sliding.
What operator system works with each gate type?
Swing gates use either electric actuator arms (for lighter gates) or hydraulic ram operators (for heavy industrial panels). Sliding gates use rack-and-pinion drive motors, which are highly reliable and easy to service. Both types integrate with access control systems, keypads, intercoms, and vehicle loop detectors. The operator choice is largely independent of the access control hardware.
Are there fire or emergency access code requirements that affect gate type?
Yes, and this varies by jurisdiction. Many industrial sites in California require a Knox box or specific fail-safe open/close behavior for emergency responder access. Swing gates often satisfy these requirements with a simpler configuration, but sliding gates can be configured with battery backup and fail-safe open modes as well. We handle the permitting process and know the local requirements for Santa Clara County facilities.
How long does a properly maintained industrial gate last?
A quality steel gate — either type — with proper galvanization or powder coating and routine maintenance should last 20–30 years on the gate structure itself. Operators and hardware typically need attention or replacement at the 10–15 year mark under heavy use. The biggest enemies of longevity are neglected lubrication, ignored alignment issues, and deferred repairs on minor damage.
asd
asd
If you’re weighing these options for a facility in Saratoga or anywhere in the South Bay, the best next step is a site walk — not a catalog. RNA Automatic Gates provides no-obligation on-site assessments where we measure your clearances, evaluate ground conditions, discuss your cycle volume, and give you a straight recommendation on gate type, steel spec, and operator system before you spend a dollar. Call us or fill out our contact form to schedule your assessment and get a detailed quote for your project. We’re local, we’re licensed, and we’ve installed industrial gates at facilities throughout Santa Clara, CA — we’ll help you get this decision right the first time.
