How Industrial Gate Installation Is Done Step by Step: A Pro’s Inside Look
Jul 27, 2026
Article, Uncategorized
A few years back, we got a call from a distribution warehouse manager in the South Bay who had already paid another contractor to install a heavy-duty sliding gate. The gate had been “finished” for three weeks. It had never worked correctly for a single day.
When we pulled up, the problem was obvious to us but had apparently never crossed anyone’s mind during the install: the post footings were undersized for the gate’s weight class, the operator was spec’d for a residential application, and there was no conduit run for future access control upgrades. Fixing it cost the owner nearly as much as starting over. That job changed how we frame every single pre-installation conversation we have. Understanding how industrial gate installation is done step by step is not just useful trivia — it’s the reason a gate either performs reliably for 20 years or becomes an expensive headache by month three.
Here’s the full process, laid out the way we actually work it.
The Job That Changed How We Approach Every Industrial Gate Install
That warehouse job taught us one non-negotiable truth: the visible gate is only about 30% of the project. The other 70% is buried in the ground, hidden in conduit, or written into a spec sheet most clients never see.
The previous contractor had skipped the site survey. They showed up, measured the opening, ordered a gate panel, and dug holes that felt “about right.” When the gate is a 200-pound residential wood panel, that approach might squeak by. When you’re hanging an 800-pound, 20-foot commercial slide gate on a high-cycle industrial track, every shortcut compounds.
What we learned: every industrial installation now starts with a formal written site assessment before a single tool leaves our truck. It’s not bureaucracy — it’s insurance for the client.
Site Assessment: Why This Phase Makes or Breaks the Whole Project
When we arrive for an industrial gate assessment, we’re not just measuring the opening width. We’re gathering about a dozen data points that drive every decision downstream.
What we’re documenting on-site:
- Traffic volume and cycle frequency. A gate that opens 10 times a day needs a completely different operator rating than one serving a shift-change rush with 80+ cycles. Industrial operators are rated by cycles per day — selecting the wrong duty cycle is the single most common spec error we see.
- Surface material and grade. Concrete, asphalt, gravel, and decomposed granite each affect footing depth, post diameter, and track anchoring method differently. A 2% cross-slope on an asphalt apron sounds minor; on a 20-foot slide gate, it creates binding that destroys rollers.
- Soil and subgrade condition. We probe for fill, clay layers, and proximity to underground utilities. In parts of Santa Clara County, expansive clay soil can shift post footings seasonally — that changes our footing design.
- Power availability. Is there a 120V or 240V circuit within a reasonable run? Is it dedicated, or shared? Industrial operators often draw significant startup amperage.
- Security and compliance requirements. UL 325 safety device requirements, OSHA entrapment protection standards, and local permit requirements in cities like Milpitas all need to be confirmed before design begins.
This phase typically takes 45 to 90 minutes. Clients who’ve rushed through it with other contractors have called us later — we’d rather spend the time up front.
How the Gate System Is Designed for Your Specific Operation
After the site assessment, we put together a system specification that covers four core components: the gate panel itself, the operator, the foundation/structural support, and the access control integration.

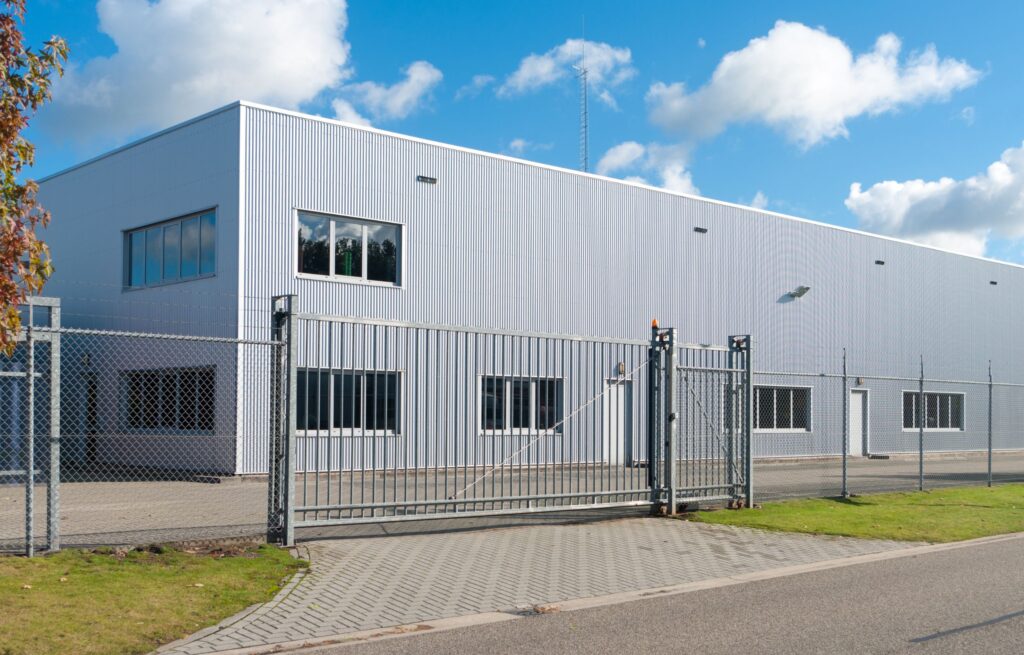

For the gate panel, industrial applications almost always come down to a choice between a cantilever slide gate, a V-track slide gate, or a swing gate configuration. Cantilever is the most reliable in high-traffic environments because the panel never touches the ground — no track to fill with debris, no bottom roller to replace every season. V-track costs less upfront but requires consistent pavement maintenance to function correctly. Swing gates are suitable for lower-traffic industrial entrances where you have the swing clearance and a flat grade.
Operator selection is driven by the gate weight, panel length, cycle frequency, and whether the system needs battery backup (common in facilities with security-critical access control). We spec commercial or industrial-grade operators — never a residential unit on an industrial panel, regardless of the price difference.
For projects needing Industrial Gate Installation Milpitas specifically, we also account for local permit requirements and any specific zoning or industrial park rules that govern gate placement and maximum height.
Foundation, Post Setting, and the Structural Work Nobody Talks About
This is the phase that the warehouse client’s first contractor skipped — and the one that determines whether everything else holds up.
For a cantilever slide gate, the main support posts carry the entire dynamic load of a moving gate. We calculate post size and footing depth based on gate weight, panel length (the moment arm matters), wind load for the area, and soil bearing capacity. In most of our Santa Clara County installations, we’re digging footings 36 to 48 inches deep and using reinforced concrete pours with post anchor bolt sets rather than setting posts directly in concrete — because bolted connections allow for future adjustment if there’s any settling.
The concrete cure time is non-negotiable. We won’t hang a panel on a fresh pour. Minimum 48 hours for lighter applications, 72 hours for heavy commercial and industrial — and we check for full cure before loading the posts. Clients sometimes push back on this timing, especially if they have a facility opening deadline. We hold the line, because a gate hung on a green post footing will rack out of plumb within a few weeks.
Track installation for slide gates involves both precision anchoring and alignment. We use a string line and laser level to set the track dead straight — even a small deviation creates friction that shortens roller life and strains the operator.
You can see examples of the foundation and post work we’ve done across various industrial sites in our project gallery.
Looking for Affordable Garage & Gate Repairs?
We offer quality service at competitive rates. Call (650) 912-1200 today to schedule your repair.
Gate Hanging, Operator Mounting, and Access Control Wiring
With footings cured and posts set, the panel goes up. For large industrial panels — anything over 500 pounds — we use a mechanical lift assist or crew of three to control the hang. The gate is set on the rollers (or hinges for swing gates), squared, and checked for level before any operator or hardware is attached.
Operator mounting follows the manufacturer’s bracket specification exactly. Torque settings on fasteners matter here — too loose and vibration causes bracket walk, too tight and you crack a cast housing. We wire the operator to a dedicated circuit with a disconnect switch positioned for easy service access.
The conduit run for access control is done in this phase, even if the client isn’t activating keypads or card readers on day one. Running conduit while the trench is open costs very little. Running it later means cutting concrete and disrupting an active facility — we’ve done enough of those retrofits for other contractors’ clients to know how disruptive it gets.
Access control integration — keypads, vehicle loop detectors, intercoms, RFID readers — is wired and tested before we close any conduit boxes. We also install all required UL 325 safety devices: primary and secondary entrapment protection, obstruction sensors, and where required, edge sensors on the gate panel itself.
We apply the same thorough process whether we’re handling industrial gate installation in Mountain View or industrial gate installation in Saratoga — the site variables change, the standards don’t.
Final Commissioning, Load Testing, and What We Hand Over to You
Once everything is wired and mechanically set, we run a full commissioning sequence before we call the job done.
What commissioning covers:
- Force testing. We measure the operator’s open and close force at multiple points in the travel to confirm it falls within UL 325 limits. An operator set too aggressive is a safety hazard and a liability.
- Obstruction test. We physically place an obstruction in the gate’s path and confirm the system stops and reverses within the required distance. If it doesn’t, we adjust sensitivity until it does.
- Cycle testing. We run the gate through a minimum of 20 full open/close cycles, watching for any binding, roller noise, or operator strain. We check the operator’s running amperage against spec.
- Limit and speed tuning. Open and close limits are set so the gate travels to the correct stop position without slamming. Soft-start and soft-stop ramps are programmed for smooth, low-impact operation.
At the end of the job, we walk the site manager or facilities team through the full system — operator manual, safety reset procedure, how to use the manual release in a power outage, and what the maintenance schedule looks like. We also provide our contact information for any follow-up questions. You shouldn’t be left guessing how your own gate works.
Frequently Asked Questions About the Industrial Gate Installation Process
How long does a typical industrial gate installation take from assessment to completion?
Most industrial gate projects run two to four days of on-site work, not counting permit processing time or concrete cure periods. A straightforward cantilever slide gate with basic access control can sometimes be done in two days. A large dual-panel swing gate system with full access control integration and conduit runs might take four to five days. We give clients a specific timeline after the site assessment, not before.
Do we need permits for industrial gate installation in cities like Milpitas or Santa Clara?
Usually yes. Most Bay Area cities require a permit for any permanently installed powered gate. The permit process covers structural footings, electrical work, and in some cases, UL 325 compliance verification. We handle the permit application as part of our standard process — you shouldn't have to navigate that paperwork on your own.
What's the difference between a commercial operator and an industrial one?
Cycle rating is the main distinction. A commercial operator might be rated for 100–300 cycles per day. A true industrial operator is typically rated 500 cycles per day or unlimited continuous duty. If your facility runs multiple shifts or has heavy truck traffic, the duty cycle spec matters more than almost any other feature on the spec sheet.
How do we maintain the gate after installation?
We recommend a professional inspection and lubrication service every six months for high-cycle industrial gates. That covers roller condition, track alignment, operator fastener torque check, safety device test, and chain or belt tension. Skipping this is how a $15 roller becomes a $600 operator replacement.
Can an existing gate opening be retrofit for automation if we already have manual gates?
Often yes, but it depends on what's there. We assess the existing posts for structural adequacy, check if the panel is compatible with a commercial operator, and determine whether a full replacement or a retrofit makes more sense. In our experience, about 60% of manual industrial gates can be automated with a retrofit; the other 40% are better served by a full replacement, usually because the original install wasn't built to automation loads.
